Control transformer and CT winding machine

• A specialized transformer that steps down high voltage to a lower voltage, typically 120 or 240 volts, for use in control circuits, relays, and automation systems.
• Crucial for safe and reliable operation of industrial equipment and machinery.
• Key features:
  • Compact size and enclosed design for protection
  • Primary and secondary windings for voltage transformation
  • Multiple voltage taps for flexibility
  • High insulation and dielectric strength for safety

Typical Specifications:

• Primary Voltage: 240V, 480V, 600V, or higher
• Secondary Voltage: 120V, 240V, or other control voltages
• Power Rating: 10VA to 100kVA or more
• Frequency: 50/60 Hz
• Insulation Class: F or H
• Enclosure Type: NEMA 1, 3R, 4, 4X, or 12

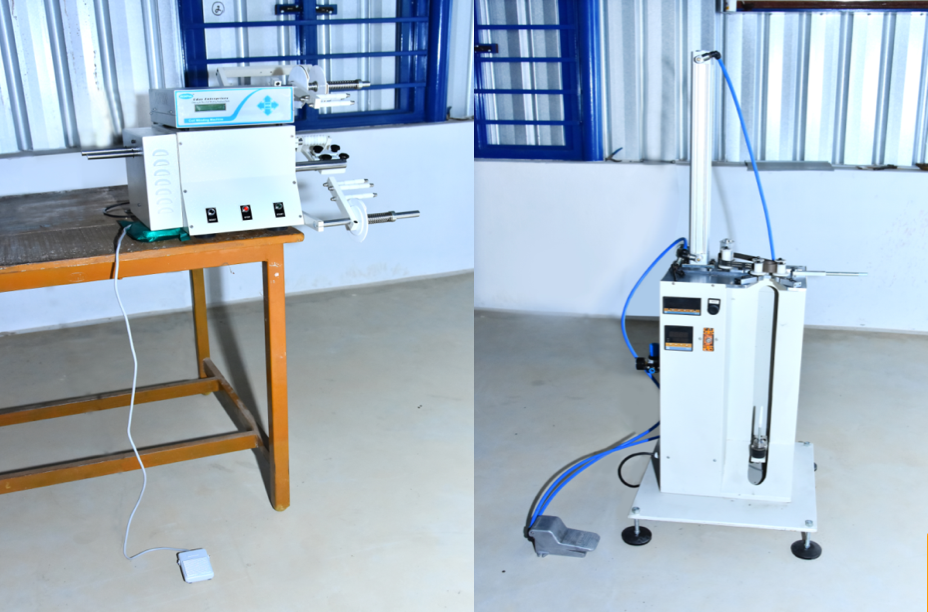

CT Winding Machine

Description:

• Automated equipment specifically designed to wind coils for current transformers (CTs) efficiently and accurately.
• Ensures consistent coil quality and reduces production time.
• Key features:
  • PLC or CNC control for precise winding patterns
  • Automatic wire feeding and tension control
  • Layer counting and insulation insertion
  • Toroidal or bar-type coil winding capabilities

Typical Specifications:

• Winding Capacity: Toroidal cores up to 10 inches in diameter
• Wire Size Range: 18 AWG to 10 AWG
• Winding Speed: Up to 100 turns per minute
• Accuracy: ±0.5%
• Features: Automatic wire cutting and termination, data logging, error detection
